Dear all,

How can I separate different rows of my grid (like category on property window, but on a grid) ?

Thanks for your help.

Dear Sir,

When I use the CExtPaintManagerOffice2007_R2_LunaBlue theme, the top right corner of the mainframe is not paint properly (?).

My mainframe is a CExtNCW < CMDIFrameWnd > derived class.

Is this normal or not ?

Thanks

Greetings!

A while ago I asked about how to keep track of the location of sorted items in grids and you pointed me to OnDataProviderSwapSeries. I had been using my own method and decided to switch to using OnDataProviderSwapSeries but there seems to be a problem. The sort does not match what is displayed. Furthermore the values of nRowColNo1, nRowColNo2 passed to OnDataProviderSwapSeries can be outside of the range of ...CountGet(); I have verified the problem sorting rows and don’t know if the problem exists sorting columns.

Am I correct in assuming that ...CountGet() returns the amount of interior Row/Columns and does not count the outside? The documentation does not specify.

void _ZoneGrid::OnDataProviderSwapSeries(
        bool bColumns, // true = sorting/swapping columns, false - rows
        LONG nRowColNo1,
        LONG nRowColNo2,
        LONG nSwapCounter
        )
{
CExtGridWnd::OnDataProviderSwapSeries( bColumns, nRowColNo1, nRowColNo2, nSwapCounter );

int Save;
int *axis = ( bColumns ) ? ColumnXlate : RowXlate;
int Endpoint = ( bColumns ) ? ColumnCountGet() : RowCountGet();

if( nRowColNo1 >= Endpoint ||
nRowColNo2 >= Endpoint )
return;

Save = axis[nRowColNo2];
axis[nRowColNo2] = axis[nRowColNo1];
axis[nRowColNo1] = Save;
}

Hi,

Whenever i press a menu or hover any command, i get these two messages in the output window:
First-chance exception at 0x7c81eb33 in CCC.exe: 0x000006BA: The RPC server is unavailable.
The thread ’Win32 Thread’ (0x10f0) has exited with code 0 (0x0).

I know that the thread is the one for the menu delays, but why do i get this RPC exception every time?

Thanks.

We think that the problem has to do with the PlaySound() method. First, please read the FAQ How to customize or disable sounds used in pop-up menus?. Then, try debugging your application on another computer and let us know whether the problem persists. Anyway, you can disable the sound system as this is described in the FAQ.

Hello,

While using the CExtReportGridWnd in my application, I think I found a bug that can also simply be produced with your ReportGrid sample.

1. Launch the ReportGrid sample (compiled in static unicode debug)
2. Drag / drop the "Name" column header in the "group by" box
3. Scroll down the window and expand the last item (named "LL mountain frame - silver 52")
4. Select the four last subitems (leaving one), and destroy them with the Delete key
5. Select the last remaining subitem, and destroy it.
6. ASSERT failure in the CExtTreeGridCellNode::FromHTREEITEM method (and crash in the release mode).

This appens only in the last group.

I also encounter the same behavior (same bug ?) when unregistering all the rows of a CExtReportGridWnd instance where rows have been grouped.

Would you mind providing a fix, please ? (However, I am not stuck since I can temporarily disable the "group by" feature).

Good luck in the debug, and thanks in advance.

Best Regards,

Christophe Guibert

Thank you for reporting the bug. You can fix it by updating the source code for the CExtReportGridWnd::ReportItemUnRegisterSelection() method:

bool CExtReportGridWnd::ReportItemUnRegisterSelection(
    bool bRedraw
    )
{
    ASSERT_VALID( this );
    if(     SelectionIsEmpty()
        ||  RowCountGet() == 0
        ||  ColumnCountGet() == 0
        )
        return false;
HTREEITEM htiNewFocus = NULL;
    if( ! ReportItemModifySelectionForUnRegistering( false, &htiNewFocus ) )
        return false;
    m_nHelerLockOnSwUpdateScrollBars ++;
    m_nHelerLockEnsureVisibleColumn ++;
    m_nHelerLockEnsureVisibleRow ++;
CTypedPtrList < CPtrList, CExtReportGridItem * > _listToRemove;
LONG nRowNo = SelectionGetFirstRowInColumn( 0 );
    for( ; nRowNo >= 0; )
    {
        HTREEITEM hTreeItem = ItemGetByVisibleRowIndex( nRowNo );
        ASSERT( hTreeItem != NULL );
        CExtReportGridItem * pRGI = ReportItemFromTreeItem( hTreeItem );
        ASSERT_VALID( pRGI );
        _listToRemove.AddHead( pRGI );
        if( ItemGetChildCount( hTreeItem ) == 0 )
            nRowNo = SelectionGetNextRowInColumn( 0, nRowNo );
        else
        {
            hTreeItem = ItemGetNext( hTreeItem, false, true, false );
            if( hTreeItem == NULL )
                break;
            nRowNo = ItemGetVisibleIndexOf( hTreeItem );
            ASSERT( nRowNo > 0 );
            nRowNo = SelectionGetNextRowInColumn( 0, nRowNo - 1 );
        }
    }
    SelectionUnset( false, false );
LONG nRowEnsureVisible = -1L;
    if( htiNewFocus != NULL )
    {
        nRowEnsureVisible = ItemGetVisibleIndexOf( htiNewFocus );
        ASSERT( nRowEnsureVisible >= 0 );
    }
POSITION pos = _listToRemove.GetHeadPosition();
    for( ; pos != NULL; )
    {
        CExtReportGridItem * pRGI = _listToRemove.GetNext( pos );
        _ReportItemUnRegisterImpl( pRGI, false, false );
    }
    m_nHelerLockOnSwUpdateScrollBars --;
    m_nHelerLockEnsureVisibleColumn --;
    m_nHelerLockEnsureVisibleRow --;
    if( htiNewFocus != NULL )
    {
        LONG nNewRowCount = RowCountGet();
        if( nNewRowCount > 0 )
        {
            if( nRowEnsureVisible < nNewRowCount )
            {
                nRowEnsureVisible = ItemGetVisibleIndexOf( htiNewFocus );
                ASSERT( nRowEnsureVisible >= 0 );
                ItemFocusSet( htiNewFocus, false );
            }
            else
            {
                nRowEnsureVisible = nNewRowCount - 1L;
                htiNewFocus = ItemGetByVisibleRowIndex( nRowEnsureVisible );
                ASSERT( htiNewFocus != NULL );
                ItemFocusSet( htiNewFocus, false );
            }
        }
        else
            nRowEnsureVisible = -1L;
    }
    else if( RowCountGet() > 0 )
    {
        nRowEnsureVisible = 0;
        FocusSet( CPoint( FocusGet().x, nRowEnsureVisible ), false, false, true, false );
    }
    if( bRedraw && GetSafeHwnd() != NULL )
    {
        OnSwUpdateScrollBars();
        if( nRowEnsureVisible >= 0L )
            EnsureVisibleRow( nRowEnsureVisible, true );
        else
            OnSwDoRedraw();
    }
    return true;
}

Hi,

I have a popup menu.
when the menu is activated, the commands in it are saved, and the next time the application loads, it crashes while looking for these commands.
How can this be fixed?
What is the task of this class? where can i find comprehensive documentation of what it does?

Thanks.

Hi.

I have several docking bars that i would like their state to be saved, but some others that are not supposed to be saved - they are some property dialogs of objects that are not there the next time I run the application.
When I call the CExtControlBar::ProfileBarStateSave function I don’t see how I can say to it not to save a specific docked bar, nor can I find the function at the dock level to tell it not to be saved. The problem is that when I re-run the application it crashes at start-up because it tries to load and show these unwanted docked bars.

How do i do that?

Thanks.

I bypassed this problem by destroying my bars before closing the application.
If you have a better solution, i’ll be happy to hear about it...

Where’s the documentation for using custom .xml or .bin skins?

Dead Sir/Madame,

I am trying to implement the following task:
1. Have a toolbars which size can be changed from 16x16 to 24x24 by the user
2. The menu will always show the 16x16 bitmaps
3. The toolbars are 24 bit color depth

I cannot find a simple solution and/or sample for that kind of behavior

I would appreciate a small tutorial or sample that does just that. I saw a lot of requests for that behavior in this forum.

Thanks in advance

Here are the steps you need to follow. Create both 16x16 and 24x24 toolbar resources. The 16x16 toolbar resource should have the same command identifiers as in your menu resource(s) (you can use them during development using class wizard for adding command handler/command updating methods). The 24x24 toolbar resource should have some other button identifiers (different form those in the 16x16 toolbar resource). Now each command has two identifiers: ID_SOME_COMMAND_SMALL used in the 16x16 toolbar and menu and ID_SOME_COMMAND_BIG used in the 24x24 toolbar resource. You should develop the draft version of your toolbars using 16 or 256 color images because Visual Studio toolbar resource editor does not provide the 16/24/32-bit color image editor. Finally, you can replace toolbar bitmaps with those of higher color. As we said, you should use the small version of command identifiers during development. The toolbar window should use the large toolbar resource version, i.e. you should use resource identifier of 24x24 toolbar resource identifier when invoking CExtToolControlBar::LoadToolBar(). The command manager should be updated from both toolbar resources. If you add command handler/command updating methods for the ID_SOME_COMMAND_SMALL command to some class, then this class will have the following message map entries:

ON_COMMAND( ID_SOME_COMMAND_SMALL, OnSomeSmall )
ON_UPDATE_COMMAND_UI( ID_SOME_COMMAND_SMALL, OnUpdateSomeSmall )

ON_COMMAND( ID_SOME_COMMAND_BIG, OnSomeSmall )
ON_UPDATE_COMMAND_UI( ID_SOME_COMMAND_BIG, OnUpdateSomeSmall )

Hi,

Looks like I’m getting there, but there are still several problems with the proposed approach - How do i change the toolbar from small to large icons at run-time? The user can select if he want’s large or small icons in the toolbar in the customize dialog.

Also, do you have a customize dialog for toolbars in the library? is there any tutorial on how to use it?

Thanks for the prompt response.

Hello

In my tabbed MDI application I want to be able to open new documents without making them the active window. If this behaviour is desired I use

nCmdShow = SW_SHOWMAXIMIZED|SW_SHOWNOACTIVATE;

in my CChildFrame::ActivateFrame method.

Under W2K this works fine but under Windows XP the windows are not maximized anymore = the frame of the document can be seen.

Do you know what is wrong? Does this have anything to do with Prof-Uis or is that a general difference of the OS?

Thanks in advance

Thomas

I have this dialog in a resizable bar. The resource is a simple form. But in the resizable bar, you see the border of the dialog and a title bar. How do I set some styles so the dialog in a resizable bor has no apparent borders or a title?

Seth

The CExtNCW template does not analyze the WS_CHILD style, so it can be applied to popup dialogs only. Therefore CExtNCW cannot be used for child dialogs so far.

More specifically do you have a non-resizable dialog that is ordinary except for using Prof-UIS styles?

The CExtResizableDialog class is designed for dialogs of all the types. You can make your dialog non-resizable by setting the Border style in the resource editor to Dialog Frame. Do not forget to invoke ShowSizeGrip( FALSE ) in OnInitDialog() to hide the resizing gripper.

Thanks

I found the answer in the Help documentation. And I got this to work right by not templating and directly subclassing CExtResizableDialog.

Hello,
I am trying to utilize CExtPropertyGridCtrl in a dialog, i think i have done everything refering to CompoundProperties sample. Everthing works fine, except one thing : the scrollbar and combo boxes are gray in color...
In my application i am using
g_PaintManager.InstallPaintManager( new CExtPaintManagerXP );
If i change it to
g_PaintManager.InstallPaintManager( new CExtPaintManagerOffice2007_R2_Obsidian );
there happens a very slight change, not exactly the same as the CExtPaintManagerOffice2007_R2_Obsidian choice like in your samples.
My other controlbar displays the changes correctly...
Can you find a reason for me?
Thank you very much in advance.
Erki

Would you send some screenshots so we can see what is wrong exactly? At the moment we can only guess that the problem is with Windows XP themes. It seems you have not activated themes in your application. To do this, just add the manifest resource to your project. The FAQ How to enable XP visual themes for my application? may be helpful with this.

Is it possible to implement the shift (for consecutive multiple select) and control (for selective multiple select) keys with the mouse in CExtGridCtrl and CExtReportGridWnd?

Thanks

Hi,
I’ve got an app with the customization subsystem.
In the app there is dialog with a toolbar on it.

If I change set a check on "Large icons in toolbars" in customize dlg
the icons in the toolbar looks bigger but the toolbar still got the same size.

How can I fit the toolbar?

Thanks for any help.
Michael

I started a MDI using the Prof-UIS wizard in Visual Studio 6 Now I want to add the UI selector toolbar. Then I added the CExtThemeSwitcherToolControlBar m_wndToolBarUiLook; Then I edited CMainFrame::OnCreate and the toolbar shows up and is dockable. What steps to I take to get the context menu filled out properly so I can redisplay the toolbar if it has been hidden previously.

Also, I don’t think your search function works very well. So this information could be on site already I just couldn’t find it.

Thank you in advance for your time,
Seth

Check out the thread "context menu for a list of control bars". It’s te 3rd below yours. That thread might have the answer to your question:

--- Quote ---

A control bar is not displayed in context menus only if Prof-UIS cannot find the display name of this control bar. This is true for control bars of all types. The display name can be one of the following:

1) The window text of the control bar specified when it is created with CExtControlBar::Create().

2) The text of the menu item which has the same command identifier as the control bar’s dialog control identifier specified when it is created with CExtControlBar::Create(). Typically this menu item is used for showing/hiding the control bar.

--- end Quote ---

Regards: Chris

Here, I’ll add the related code from OnCreate(). I figure whatever I need to do, it’s likely to be done there. This is wizard generated except for the addition of the UI Selector.


// The UI Selector is m_wndToolBarUiLook of type CExtThemeSwitcherToolControlBar
    if(        (! m_wndToolBarUiLook.Create( NULL, this, ID_VIEW_UI_LOOK_BAR ) )
        ||    (! m_wndToolBarUiLook.ThemeSwitcherInit() )
        )
    {
        TRACE0("Failed to create m_wndToolBarUiLook toolbar\n");
        return -1; // fail to create
    }
.
.
.
    m_wndToolBarUiLook.EnableDocking( CBRS_ALIGN_ANY );

//    DockControlBar( &m_wndToolBarUiLook );

// I’m not really sure if I should add something here or not
static UINT statBasicCommands[] =
{
    ID_FILE_NEW,
    ID_FILE_OPEN,
    ID_FILE_SAVE,
    ID_APP_EXIT,
    ID_APP_ABOUT,
    ID_FILE_PRINT,
    ID_FILE_PRINT_SETUP,
    ID_EDIT_COPY,
    ID_EDIT_CUT,
    ID_EDIT_PASTE,
    ID_EDIT_UNDO,
    ID_VIEW_TOOLBAR,
//    ID_VIEW_UI_LOOK_BAR,
    ID_VIEW_RESIZABLEBAR_EMPTY,
    ID_VIEW_RESIZABLEBAR_TREE,
    ID_VIEW_RESIZABLEBAR_EDIT,
    ID_VIEW_RESIZABLEBAR_CP,
    ID_VIEW_RESIZABLEBAR_DLG,
    ID_WINDOW_TILE_HORZ,
    0 // end of commands list
}; // statBasicCommands array



The context menu displays a greyed out option "UI Selector". Why is it grey?

Please make sure your CMainFrame::PreTranslateMessage() method starts with the following code:

BOOL CMainFrame::PreTranslateMessage( MSG * pMsg)
{
    if( m_wndToolBarUiLook.PreTranslateMessage( pMsg ) )
        return TRUE;

I there, I have the following problem:
I’ve developed a dialog aplication that uses CExtDateTimeWnd and CExtDurationWnd controls in the main dialog.
The aplication works just fine in debug and release modes.
Now the problem. yesterday, I was changing my pc for another one, and when i try to execute the code in the new pc (in debug mode!) I receive the next error message:

Debug assertion Failed!
File: winctrl5.cpp line: 189

(obviously I perform a clean/rebuild all)

I’ve tracked down the problem and it happens in the main dialog’s construction, in the moment when the control member variable CExtDurationWnd m_wnd_xx; is created, in the line:
(ExtDurationWnd.cpp) m_dtDate = COleDateTime::GetCurrentTime();

My OS data
windows Xp SP2
visual c++ 6.0 sp6
settings: EspaA±ol internacional - Chile

thanks in advanced.

Hi there, the call stack is the next one:

CDateTimeCtrl::GetTime(COleDateTime & {...}) line 189 + 31 bytes
CExtDateTimeWnd::CExtDateTimeWnd() line 2632 + 9 bytes
CSA2OP_CTDlg::CSA2OP_CTDlg(CWnd * 0x00000000 {CWnd hWnd=???}) line 108 + 1192 bytes
CSA2OP_CTApp::InitInstance() line 146 + 13 bytes
AfxWinMain(HINSTANCE__ * 0x00400000, HINSTANCE__ * 0x00000000, char * 0x00141f00, int 1) line 39 + 11 bytes
WinMain(HINSTANCE__ * 0x00400000, HINSTANCE__ * 0x00000000, char * 0x00141f00, int 1) line 30
WinMainCRTStartup() line 330 + 54 bytes
KERNEL32! 7c816d4f()

thanks

Here is the constructor of the CExtDateTimeWnd class:

CExtDateTimeWnd::CExtDateTimeWnd()
 : CExtDurationWnd()
 , m_bBlankYear( false )
 , m_bBlankMonth( false )
 , m_bBlankDay( false )
 , m_bBlankHour( false )
 , m_bBlankMinute( false )
 , m_bBlankSecond( false )
 , m_bBlankDesignator( false )
 , m_bAutoSelectNext( false )
{
 m_eMode = CExtDateTimeWnd::all;
 m_eTimeFormat = CExtDateTimeWnd::automatic;

 m_dtDate = COleDateTime::GetCurrentTime();

 SetStatus( CExtDurationWnd::null );
}

Is there any special reason why Ctrl+C, Ctrl+V wouldn’t work in the Inplace EditCtrl in the CExtGridWnd?

I have a CMainFrame class; inside of it, there is a static SplitterWnd and on the two sides of the SplitterWnd, I have 2 CFormViews and on one of these FormViews I have my CExtGridWnd.

Do you by any chance have an idea what could cause the problem? Unfortunately I couldn’t reproduce the problem in a small sample.
I know I could write my own EditCtrl class, override the appropiate methods and subclass original EditCtrl. But in all of your samples it works without subclassing, so I’d prefer some other solution for my problem.

Thank you:
Chris

We guess there may be some accelerator table pre-translation problem in your app, which causes the key combinations not work properly. Please try to remove all these key combinations from the accelerator table resource.

Yes, removing those key combinations from our accelerator table solved the problem. But we really do need those, since the items represented in the grid has to be put on the clipboard in our application.

When an application is using clipboard, it’s not a good practice to use accelerators other than the ones throughoutly used in Windows for clipboard operations. But as I’ve been reading through Prof-UIS and MFC PreTranslateMessage codes, it seems to me that this is kind of an MFC bug.... Actually I had the same problem with CTreeCtrl and CListCtrl, I had to subclass in-place EditCtrl-s to handle these key events. Another proof of bad coding considerations with MFC itself. Well, anyway, I’m going to go for subclassing then.

Thank you:
Chris

Last few hours I’ve been struggling with trying to find an appropiate place to subclass the in-place editcontrol created inside the grid.

My first guess was to call SubclassWindow method in the overriden OnGbwBeginEdit method. Help says: "Called to activate an in-place editor for the specified cell. The method returns true if the editor window has been successfully created." so I was assuming that default implementation creates editor and returns. Well, reading through code I had to realize, CExtGridBaseWnd::OnGbwBeginEdit only returns after all editing is done and inplace editor is destroyed.

Second guess: Override CExtGridWnd::OnGridCellInplaceControlCreate, but help was pretty clear on that: default implementation does nothing, only returns NULL.

Third and closest guess: For my editable cells I created a class derived from CExtGridCellString and override OnInplaceControlCreate method. Default implementation really does create the editor and returns its HWND. BUT.... when I called SubclassWindow after calling default implementation of OnInplaceControlCreate and passing the returned HWND in SubclassWindow (in case it’s not NULL ,of course), I got an assertion:

ASSERT(FromHandlePermanent(hWndNew) == NULL);
// must not already be in permanent map

So my main question: What is the right way to subclass the editor created for the grid?

Best regards:
Chris

If you want to use a custom inplace edit control instead of ours, you need to override the CExtGridCell::OnInplaceControlCreate() virtual method, which is is used for creating the edit control. Your edit class should be derived from CExtGridInplaceEdit. So basically you need to copy the body of the CExtGridCell::OnInplaceControlCreate method into your overridden method and replace CExtGridInplaceEdit with CYourGridInplaceEdit (your class).

Please note, there is a virtual method OnInplaceControlWindowProc in the CExtGridCell class. It is spying on the window procedure of the in-place editor and returns true if a Windows message has been handled by the cell object. So you can override this method to handle any message from the in-place edit control. This means that probably you may not have to create your own inplace edit control.

Ok, so if I understand right, there’s no way I could subclass... :(

The reason I wanted to choose this approach is that I also have a CTreeCtrl which has the same problem, so I already created a CEdit-derived class for fixing this. I could also override OnInplaceControlPreTranslateMessage and handle the messages there, but then I would have the same code twice: once in this OnInplaceControlPreTranslateMessage and once in my CEdit-derived class. I’m not really fond of this idea, since: Who will remember in some years that I had this code twice? So if anytime I realize I have to fix something in it, I probably will just fix it in one of the codes and forget about the other.

You are writing: "So basically you need to copy the body of the CExtGridCell::OnInplaceControlCreate method into your overridden method and replace CExtGridInplaceEdit with CYourGridInplaceEdit (your class)." This also has it’s dangers: What if you change the body of the CExtGridCell::OnInplaceControlCreate method in any of your future versions? At every Prof-UIS upgrading I should check if it changed or not and if so, copy the changes to my code as well.

But since I don’t see any other solution right now, I guess I’ll go for this second approach: use the edit class I already created, derive it from CExtGridInplaceEdit, override CExtGridCell::OnInplaceControlCreate method and create my own editor in it. Probably I won’t have problems subclassing the inplace editor of the CTreeCtrl to a CExtGridInplaceEdit-derived class.

Have a good weekend!
Chris

Yes, to create an CExtGridInplaceEdit-derived seems to be the best solution. We do not plan to change it abd CExtGridCell::OnInplaceControlCreate() so you will have no problem in future with this.

I couldn’t make it work this way, after all. The main reason is that I wanted to use this same CExtGridInplaceEdit-derived class in my CTreeCtrl and subclass that inplace editor to this same class. For that I would need a default constructor for this CExtGridInplaceEdit-derived class, which I don’t think I can make.

So I have overriden the OnInplaceControlPreTranslateMessage method and handled everything there. It works good now.

One more question: The context menu appearing when I right-click inside the inplace editor... does that show OS/user specific language? I mean if the user of our application uses for example Hungarian Windows, will he/she see those strings (Copy/Paste/Cut/Select all, etc.) in Hungarian, or you fill that context menu with Prof-UIS resources?

Thank you:
Chris

You can create a template class with the PreTranslateMessage method, that can be applied to the edit class for the tree and for the grid. This may help you to solve the problem of dubbing the source code. As for the context menus, we did not find any way to retreive all the menu items including the extended part, so we build the menu manually. It is done in the CExtEditBase::OnContextMenu method. All you can do is to disable Prof-UIS menus. Just set the m_bHandleCtxMenus property to false.

I wonder how the framework selects which control bars get inserted in the pop-up menu by default. When I right-click on the empty area of the toolbar menu, I get a popup menu of control bars. In one application, I have all the control bars showed up, this is what I wanted. In another application, only toolbars showed up, the menu bar and resizable dialog bar didn’t show up. I have checked many times, there doesn’t seem to be any difference between the two applications as far as the way I use control bars is concerned. What could be the problem? I am aware of the FAQ on how to customize popup menu, but I don’t want to customize it, the default behavior should be just what I wanted.

Are there any examples of GridCtrl’s in dialog box that you could point me too?

To be clear (I shouldn’t post so late in the day):

I’d like to use a ExtGridCtrlWnd in a Dialog box. Is there any sample code that does something like this?

Hi!

Check out the CPageGrid class in Prof-UIS_Controls Sample. That class is derived from CPageBase, which in turn is derived from CExtResizableDialog, the main Dialog class of Prof-UIS. This page of the sample shows the usage of all the possible CExtGridCell types. In the resource look for the dialog IDD_PAGE_GRID. The dialog is fully occupied by a custom control of class ProfUIS-ScrollItemWindow. Probably the rest can be figured out reading the sample code.

Regards:
Chris.

Great! Thank you.
That’s what I was looking for!

John

Additionally here is a small project that shows how to use the grid in a dialog. It may be helpful with this.

Hi:

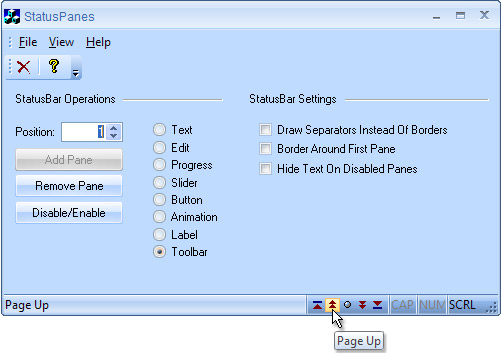

Is it possible to place a toolbar inside a status bar? Your examples show how to place controls inside status bars but I’m not aware of any where a toolbar is placed inside one.

Thanks
